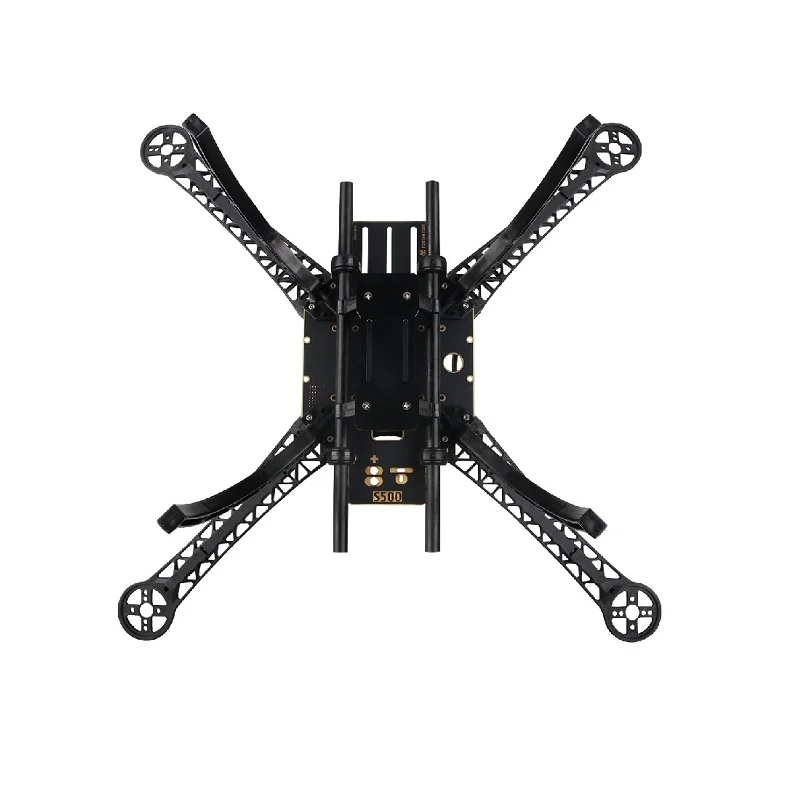

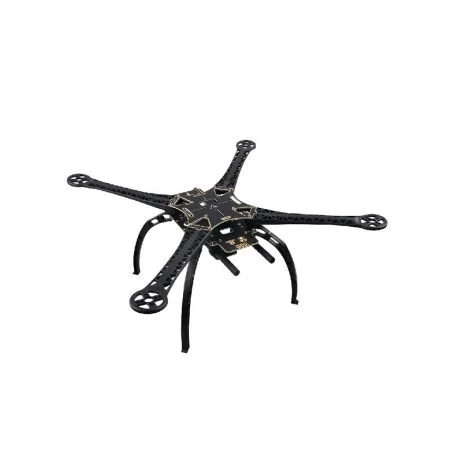

S500 FPV Quadcopter Frame with High Landing Gear

This S500 Multi Rotor Air PCB Frame is an upgraded version of the successful F450 Quadcopter Frame, retaining all its key features.

• The arms have a slight upsweep, providing a dihedral effect for increased stability during descent.
• Made from tough Glass Fiber and ultra-durable Polyamide-Nylon for enhanced strength and durability.
• Support ridges on the arms improve stability and provide faster forward flight.
• Adjustable battery mount for optimal weight distribution.
• Bottom frame ready for various camera mounts and gimbals, ideal for FPV and filming projects.
• Lightweight and flexible configuration with a Printed Circuit Board (PCB) for direct ESC soldering.
• 500mm wheelbase, 400gm weight, and mounting tabs for accessories.

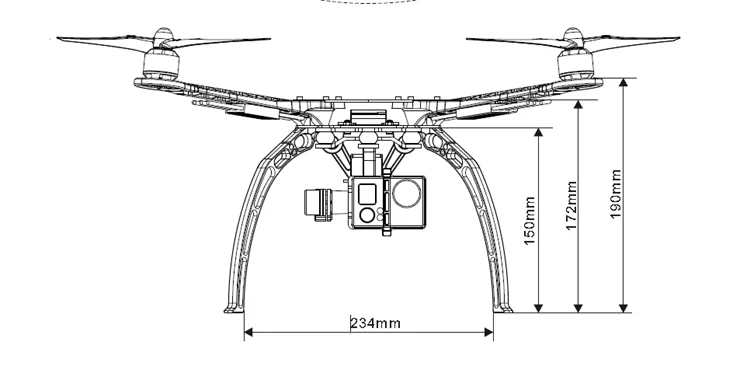

• 200mm ground clearance for landing gear with camera and accessory mounting capabilities.
• Pre-threaded brass sleeves for easy assembly and disassembly.

The S500 Quadcopter Frame is suitable for various components like flight controllers, batteries, etc., offering a clean and neat build. Its aerodynamic structure, featuring PA66 arms with a glass fiber integrated frame, provides higher strength and lighter weight.

Includes a full line of multi-rotor accessories such as motors, ESCs, Li-PO batteries, flight controllers, FPV cameras, gimbals, propellers, and remotes.

Note: Dimensions and weight may have a ±2% error. S500 arm colors may vary.

Features:

• Made by advanced engineering material, super strong & smooth
• Easy to assemble and disassemble.
• The frame is tough and durable.
• The main glass fiber frame has good strength.
• The arm equips support ridges for better and faster forward flight.
• Features pre-threaded brass sleeves.
• Large mounting tabs for camera mounting.
• In-built power distribution board.

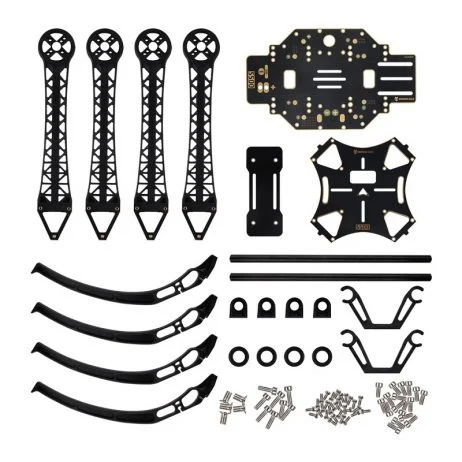

Package Includes:

• 1 x S500 Quadcopter Frame (Top and Bottom) with Integrated PCB.
• 4 x S500 arm
• 1 x Plastic Landing Gear for Quadcopter
• 2 x Special Pipes.
• 4 x Pipe Supports.
• 1 x Screw Accessories set (Allen Head).
• 1 x Manual.

Recommendation (NOT Included):

• Propeller: “1045″ OR “8045” Orange Propeller (CW & CCW)
• Battery: 3S Orange LiPo (1800 – 3600mAh)
• ESC: 15A – 40A.
• Motor: 800-1100 KV (brushless dc motor)
• Allen Key: 10 in 1 Metric Combination Hexagonal Key Allen Wrench
